Specifications

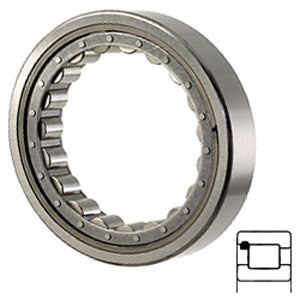

| title | M5228UV |
| price | $ 1,393.13 / each |
| Category | Cylindrical Roller Bearings |
| UNSPSC | 31171547 |
| Harmonized Tariff Code | 8482.50.00.00 |
| Manufacturer Name | LINK BELT |
| Inch - Metric | Inch |
| Brand | LINK BELT |
| Weight / LBS | 26.5 |
| Bore | 6.632 Inch | 168.453 Millimeter |
| EAN | 662327108298 |
| Other Features | Standard Capacity | 1 Rib Outer Ring with Retaining Ring | Wide Width | Light Series | Cage on Outer Ring ID |
| Outside Diameter | 9.843 Inch | 250 Millimeter |
| Relubricatable | Yes |
| Global Part Number GPN | 450187 |
| Precision Class | RBEC 1 | ISO P0 |
| Width | 3.25 Inch | 82.55 Millimeter |
| Number of Rows of Rollers | Single Row |
| Retainer | Yes |
| Separable | No |
| Bore Profile | Straight |
| Profile | Roller Assembly with Outer Ring - No Inner Ring |
| Snap Ring | No |
| Internal Clearance | C0-Medium |
