Specifications

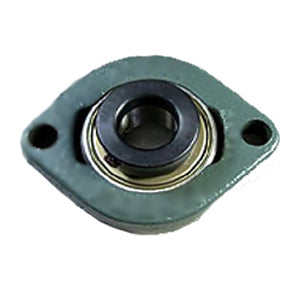

| title | AELFD206-104 |
| price | $ 48.59 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | NTN |
| Weight / kgm | 0.82 |
| Inch - Metric | Inch |
| Brand | NTN |
| Weight / LBS | 1.8 |
| Bore | 1.25 Inch | 31.75 Millimeter |
| EAN | 4547359460407 |
| Other Features | Single Row | Light Duty | Narrow Inner Race | Has Trash Guard | With Set Screw |
| Relubricatable | No |
| Global Part Number GPN | 554021 |
| Mounting Method | Eccentric Collar |
| Length Thru Bore | 1.406 Inch | 35.7 Millimeter |
| Cartridge Pilot Diameter | 0 Inch | 0 Millimeter |
| Cartridge Pilot Depth | 0 Inch | 0 Millimeter |
| Bolt Spacing | 3.531 Inch | 89.7 Millimeter |
| Nominal Bolt Circle Diameter Round | 3.6 Inch | 90.5 Millimeter |
| Housing Style | 2 Bolt Flange Block |
| Number of Mounting Holes | 2 |
| Mounting Bolts | 3/8 Inch |
| Insert Part Number | AEL206-104 |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Iron |
| Expansion / Non-expansion | Non-expansion |
| Seals | Single Lip Contour Riding |
| Pilot Configuration | No Pilot |
