FREE SHIPPING on orders over $100
Offer price breaks when you order a larger quantify.
In Stock
Leading time would be depends on our work efficiency and delivery schedule, usually within 2 business days.
Specifications
| title | AZB2307 |
| price | $ 1,937.95 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | REXNORD |
| Inch - Metric | Inch |
| Brand | REXNORD |
| Weight / LBS | 34.6 |
| Bore | 3.438 Inch | 87.325 Millimeter |
| EAN | 698210932084 |
| Other Features | Double Row | Single Collar | Two Open Auxiliary End Cap | With Set Screw |
| Relubricatable | Yes |
| Global Part Number GPN | 552427 |
| Mounting Method | Concentric Collar |
| Length Thru Bore | 4.375 Inch | 111.12 Millimeter |
| Cartridge Pilot Diameter | 0 Inch | 0 Millimeter |
| Cartridge Pilot Depth | 0 Inch | 0 Millimeter |
| Bolt Spacing | 6.719 Inch | 170.663 Millimeter |
| Nominal Bolt Circle Diameter Round | 9.5 Inch | 241 Millimeter |

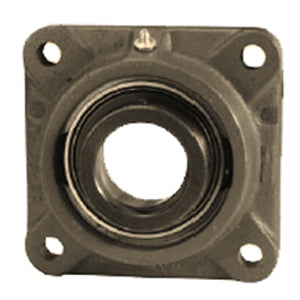

| Housing Style | 4 Bolt Square Flange Block |
| Number of Mounting Holes | 4 |
| Mounting Bolts | 3/4 Inch |
| Insert Part Number | 2307U |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Iron |
| Expansion / Non-expansion | Non-expansion |
| Seals | Clearance Seal |
| Pilot Configuration | No Pilot |
