Specifications

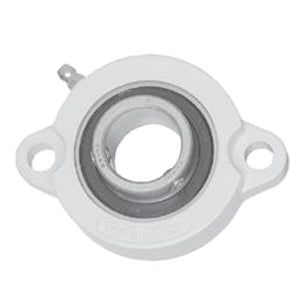

| title | BLF1W |
| price | $ 41.42 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | ASAHI BEARINGS |
| Weight / kgm | 0.136 |
| Inch - Metric | Metric |
| Brand | AMI BEARINGS |
| Weight / LBS | 0.3 |
| Bore | 0.472 Inch | 12 Millimeter |
| EAN | 0808250107940 |
| Other Features | Single Row | Spherical | Normal Duty | White Housing |
| Relubricatable | Yes |
| Global Part Number GPN | 527403 |
| Mounting Method | Set Screw |
| Length Thru Bore | 0.866 Inch | 22 Millimeter |
| Cartridge Pilot Diameter | 0 Inch | 0 Millimeter |
| Cartridge Pilot Depth | 0 Inch | 0 Millimeter |
| Bolt Spacing | 2.52 Inch | 64 Millimeter |
| Nominal Bolt Circle Diameter Round | 2.5 Inch | 64 Millimeter |
| Housing Style | 2 Bolt Flange Block |
| Number of Mounting Holes | 2 |
| Mounting Bolts | 6 Millimeter |
| Insert Part Number | B1 |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Thermoplastic |
| Expansion / Non-expansion | Non-expansion |
| Seals | Contact Seal |
| Pilot Configuration | No Pilot |
