Specifications

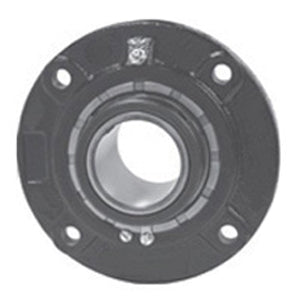

| title | BMBR2060MM |
| price | $ 2,240.62 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | REXNORD |
| Inch - Metric | Metric |
| Brand | REXNORD |
| Weight / LBS | 14.8 |
| Bore | 2.362 Inch | 60 Millimeter |
| EAN | 698210943820 |
| Other Features | Double Row | Single Collar | Two Auxiliary End Cap | With Set Screw |
| Relubricatable | Yes |
| Global Part Number GPN | 554412 |
| Mounting Method | Concentric Collar |
| Length Thru Bore | 3.5 Inch | 88.9 Millimeter |
| Cartridge Pilot Diameter | 5.512 Inch | 140 Millimeter |
| Cartridge Pilot Depth | 1 Inch | 25.4 Millimeter |
| Bolt Spacing | 4.594 Inch | 116.7 Millimeter |
| Nominal Bolt Circle Diameter Round | 6.5 Inch | 165 Millimeter |
| Housing Style | 4 Bolt Round Flange Cartridge |
| Number of Mounting Holes | 4 |
| Mounting Bolts | 13 Millimeter |
| Insert Part Number | 2060MMU |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Iron |
| Expansion / Non-expansion | Non-expansion |
| Seals | Heavy Contact |
| Pilot Configuration | With Pilot |
