Specifications

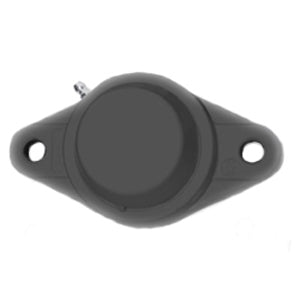

| title | BNFL8-24CEB |
| price | $ 109.15 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | ASAHI BEARINGS |
| Weight / kgm | 0.88 |
| Inch - Metric | Inch |
| Brand | AMI BEARINGS |
| Weight / LBS | 1.93 |
| Bore | 1.5 Inch | 38.1 Millimeter |
| EAN | 0808250162635 |
| Other Features | Single Row | Spherical | Normal Duty | Black Housing | Closed End |
| Relubricatable | Yes |
| Global Part Number GPN | 533906 |
| Mounting Method | Set Screw |
| Length Thru Bore | 1.397 Inch | 35.484 Millimeter |
| Cartridge Pilot Diameter | 0 Inch | 0 Millimeter |
| Cartridge Pilot Depth | 0 Inch | 0 Millimeter |
| Bolt Spacing | 5.672 Inch | 144.069 Millimeter |
| Nominal Bolt Circle Diameter Round | 5.7 Inch | 144 Millimeter |
| Housing Style | 2 Bolt Flange Block |
| Number of Mounting Holes | 2 |
| Mounting Bolts | 1/2 Inch |
| Insert Part Number | B8-24 |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Thermoplastic |
| Expansion / Non-expansion | Non-expansion |
| Seals | Contact Seal |
| Pilot Configuration | No Pilot |
