Specifications

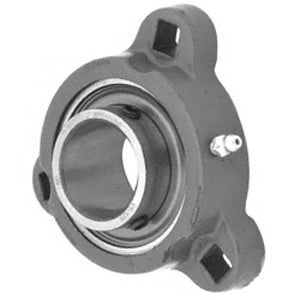

| title | BTM207-20NPMZ2 |
| price | $ 96.36 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | ASAHI BEARINGS |
| Weight / kgm | 0.745 |
| Inch - Metric | Inch |
| Brand | AMI BEARINGS |
| Weight / LBS | 1.3 |
| Bore | 1.25 Inch | 31.75 Millimeter |
| EAN | 0808250314928 |
| Other Features | Single Row | Spherical | Normal Duty | Zinc Coated Insert |
| Relubricatable | Yes |
| Global Part Number GPN | 528579 |
| Mounting Method | Set Screw |
| Length Thru Bore | 1.295 Inch | 32.9 Millimeter |
| Cartridge Pilot Diameter | 0 Inch | 0 Millimeter |
| Cartridge Pilot Depth | 0 Inch | 0 Millimeter |
| Bolt Spacing | 3.4 Inch | 86.6 Millimeter |
| Nominal Bolt Circle Diameter Round | 3.9 Inch | 99 Millimeter |
| Housing Style | 3 Bolt Flange Block |
| Number of Mounting Holes | 3 |
| Mounting Bolts | 3/8 Inch |
| Insert Part Number | B7-20MZ2 |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Nickel Coated Cast Iron |
| Expansion / Non-expansion | Non-expansion |
| Seals | Contact Seal |
| Pilot Configuration | No Pilot |
