Specifications

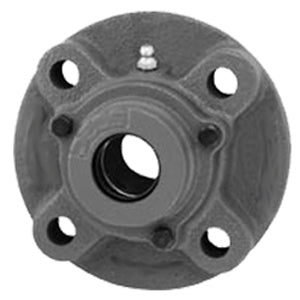

| title | C-UCFC209D1 |
| price | $ 189.46 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | NTN |
| Inch - Metric | Metric |
| Brand | NTN |
| Weight / LBS | 7.1 |
| Bore | 1.772 Inch | 45 Millimeter |
| EAN | 4547359036923 |
| Other Features | Single Row | Light Duty | Wide Inner Race | Open End | Spigot Joint | Has Flinger |
| Relubricatable | Yes |
| Global Part Number GPN | 554159 |
| Mounting Method | Set Screw |
| Length Thru Bore | 1.937 Inch | 49.2 Millimeter |
| Cartridge Pilot Diameter | 4.134 Inch | 105 Millimeter |
| Cartridge Pilot Depth | 0.472 Inch | 12 Millimeter |
| Bolt Spacing | 3.673 Inch | 93.3 Millimeter |
| Nominal Bolt Circle Diameter Round | 5.2 Inch | 132 Millimeter |
| Housing Style | 4 Bolt Round Flange Cartridge |
| Number of Mounting Holes | 4 |
| Mounting Bolts | 14 Millimeter |
| Insert Part Number | UC209D1 |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Iron |
| Expansion / Non-expansion | Non-expansion |
| Seals | Single Lip Land Riding |
| Pilot Configuration | With Pilot |
