Specifications

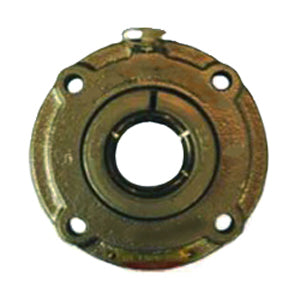

| title | CRFCF-PN32T |
| price | $ 744.90 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | MORSE INDUSTRIAL |
| Inch - Metric | Inch |
| Brand | MORSE INDUSTRIAL |
| Weight / LBS | 8.1 |
| Bore | 2 Inch | 50.8 Millimeter |
| EAN | 662461338636 |
| Other Features | Single Row | Standard Duty | Reduced Diameter Insert | Skwezloc | Has Flinger |
| Relubricatable | Yes |
| Global Part Number GPN | 558737 |
| Mounting Method | Concentric Collar |
| Length Thru Bore | 2.219 Inch | 56.363 Millimeter |
| Cartridge Pilot Diameter | 4.5 Inch | 114.3 Millimeter |
| Cartridge Pilot Depth | 0.594 Inch | 15.088 Millimeter |
| Bolt Spacing | 3.8 Inch | 95.5 Millimeter |
| Nominal Bolt Circle Diameter Round | 5.4 Inch | 138 Millimeter |
| Housing Style | 4 Bolt Round Flange Cartridge |
| Number of Mounting Holes | 4 |
| Mounting Bolts | 7/16 Inch |
| Insert Part Number | PN-32T |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Fluoropolymer Coated Cast Iron |
| Expansion / Non-expansion | Non-expansion |
| Seals | High Performance Seal |
| Pilot Configuration | With Pilot |
