Specifications

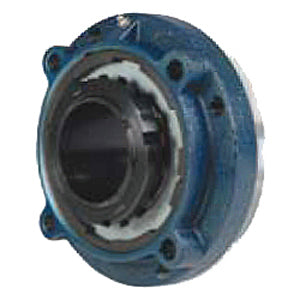

| title | DVC15K065SEO |
| price | $ 748.07 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | QM INDUSTRIES |
| Inch - Metric | Metric |
| Brand | QM INDUSTRIES |
| Weight / LBS | 18 |
| Bore | 2.559 Inch | 65 Millimeter |
| EAN | 883450274623 |
| Other Features | Double Row | Heavy Duty |
| Relubricatable | Yes |
| Global Part Number GPN | 541673 |
| Mounting Method | Tapered Adapter Sleeve |
| Length Thru Bore | 2.87 Inch | 72.9 Millimeter |
| Cartridge Pilot Diameter | 5.512 Inch | 140 Millimeter |
| Cartridge Pilot Depth | 1.25 Inch | 31.75 Millimeter |
| Bolt Spacing | 4.6 Inch | 117 Millimeter |
| Nominal Bolt Circle Diameter Round | 6.5 Inch | 165 Millimeter |
| Housing Style | 4 Bolt Round Flange Cartridge |
| Number of Mounting Holes | 4 |
| Mounting Bolts | 1/2 Inch |
| Insert Part Number | 22215 |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Steel |
| Expansion / Non-expansion | Expansion |
| Seals | Triple Lip Urethane |
| Pilot Configuration | With Pilot |
