Specifications

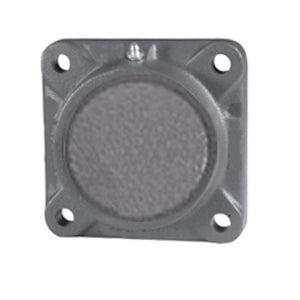

| title | F3S212ECS |
| price | $ 99.00 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | LINK BELT |
| Inch - Metric | Inch |
| Brand | LINK BELT |
| Weight / LBS | 1.6 |
| Bore | 0.75 Inch | 19.05 Millimeter |
| EAN | 793699511321 |
| Other Features | Single Row | Intermediate Duty | Closed End | Extended Inner Race |
| Relubricatable | Yes |
| Global Part Number GPN | 244559 |
| Mounting Method | Set Screw |
| Length Thru Bore | 1.125 Inch | 28.575 Millimeter |
| Cartridge Pilot Diameter | 0 Inch | 0 Millimeter |
| Bolt Spacing | 2.5 Inch | 63.5 Millimeter |
| Nominal Bolt Circle Diameter Round | 3.5 Inch | 88.9 Millimeter |
| Housing Style | 4 Bolt Square Flange Block |
| Number of Mounting Holes | 4 |
| Mounting Bolts | 3/8 Inch |
| Insert Part Number | SG212EL |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Iron |
| Expansion / Non-expansion | Non-expansion |
| Seals | Single Lip |
| Pilot Configuration | No Pilot |
