Specifications

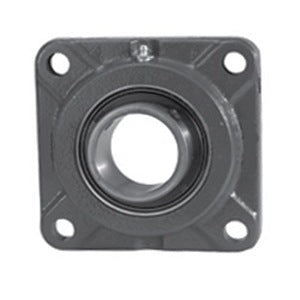

| title | F3S227E |
| price | $ 109.76 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | LINK BELT |
| Inch - Metric | Inch |
| Brand | LINK BELT |
| Weight / LBS | 4.78 |
| Bore | 1.688 Inch | 42.875 Millimeter |
| EAN | 662327036393 |
| Other Features | Single Row | Standard Duty | Has Flinger |
| Relubricatable | Yes |
| Global Part Number GPN | 559382 |
| Mounting Method | Set Screw |
| Length Thru Bore | 1.766 Inch | 44.856 Millimeter |
| Cartridge Pilot Diameter | 0 Inch | 0 Millimeter |
| Bolt Spacing | 4.125 Inch | 104.775 Millimeter |
| Nominal Bolt Circle Diameter Round | 5.8 Inch | 147.3 Millimeter |
| Housing Style | 4 Bolt Square Flange Block |
| Number of Mounting Holes | 4 |
| Mounting Bolts | 9/16 Inch |
| Insert Part Number | MB251-1116-PA |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Iron |
| Expansion / Non-expansion | Non-expansion |
| Seals | Single Lip |
| Pilot Configuration | No Pilot |
