Specifications

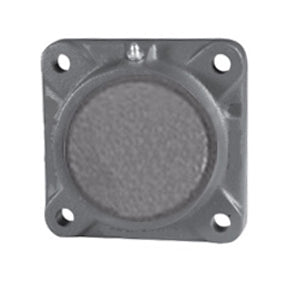

| title | F3U247NC |
| price | $ 478.98 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | REXNORD |
| Weight / kgm | 7.9 |
| Inch - Metric | Inch |
| Brand | LINK BELT |
| Weight / LBS | 17.4 |
| Bore | 2.938 Inch | 74.625 Millimeter |
| EAN | 0793699130386 |
| Other Features | Single Row | Spherical | Standard Duty | Wide Inner Race | Closed End |
| Relubricatable | Yes |
| Global Part Number GPN | 245008 |
| Mounting Method | Set Screw |
| Length Thru Bore | 2.875 Inch | 73.02 Millimeter |
| Cartridge Pilot Diameter | 0 Inch | 0 Millimeter |
| Cartridge Pilot Depth | 0 Inch | 0 Millimeter |
| Bolt Spacing | 6 Inch | 152.4 Millimeter |
| Nominal Bolt Circle Diameter Round | 8.5 Inch | 215 Millimeter |
| Housing Style | 4 Bolt Square Flange Block |
| Number of Mounting Holes | 4 |
| Mounting Bolts | 3/4 Inch |
| Insert Part Number | UG247NL |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Iron |
| Expansion / Non-expansion | Non-expansion |
| Seals | Single Lip Contact |
| Pilot Configuration | No Pilot |
