FREE SHIPPING on orders over $100
Offer price breaks when you order a larger quantify.
In Stock
Leading time would be depends on our work efficiency and delivery schedule, usually within 2 business days.
Specifications

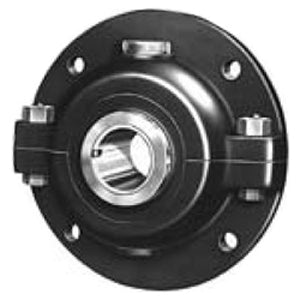

title | F4B-SD-211 |
price | $ 3,785.24 / each |
Category | Flange Block Bearings |
UNSPSC | 31171501 |
Harmonized Tariff Code | 8483.20.40.80 |
Manufacturer Name | ABB MOTORS AND MECHANICAL INC |
Weight / kgm | 35.93 |
Inch - Metric | Inch |
Brand | DODGE |
Weight / LBS | 85 |
Bore | 2.688 Inch | 68.275 Millimeter |
EAN | 0782475055395 |
Other Features | Double Row | Special Duty |
Relubricatable | Yes |
Global Part Number GPN | 551460 |
Mounting Method | Tapered Adapter Sleeve |
Length Thru Bore | 5.75 Inch | 146.05 Millimeter |
Cartridge Pilot Diameter | 0 Inch | 0 Millimeter |
Cartridge Pilot Depth | 0 Inch | 0 Millimeter |
Bolt Spacing | 7.955 Inch | 202.057 Millimeter |
Nominal Bolt Circle Diameter Round | 11.3 Inch | 287 Millimeter |
Housing Style | 4 Bolt Round Flange Block |
Number of Mounting Holes | 4 |
Mounting Bolts | 3/4 Inch |
Insert Part Number | DU-SD-211 |
Housing Configuration | 2 Piece Split |
Housing Material | Cast Iron |
Expansion / Non-expansion | Non-expansion |
Seals | Dual Piston Ring Seal |
Pilot Configuration | No Pilot |
