Specifications

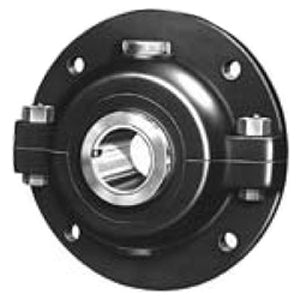

| title | F4B-SD-215 |
| price | $ 3,785.24 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | ABB MOTORS AND MECHANICAL INC |
| Weight / kgm | 36.77 |
| Inch - Metric | Inch |
| Brand | DODGE |
| Weight / LBS | 81 |
| Bore | 2.938 Inch | 74.625 Millimeter |
| EAN | 0782475054527 |
| Other Features | Double Row | Special Duty |
| Relubricatable | Yes |
| Global Part Number GPN | 551454 |
| Mounting Method | Tapered Adapter Sleeve |
| Length Thru Bore | 5.75 Inch | 146.05 Millimeter |
| Cartridge Pilot Diameter | 0 Inch | 0 Millimeter |
| Cartridge Pilot Depth | 0 Inch | 0 Millimeter |
| Bolt Spacing | 7.955 Inch | 202.057 Millimeter |
| Nominal Bolt Circle Diameter Round | 11.3 Inch | 287 Millimeter |
| Housing Style | 4 Bolt Round Flange Block |
| Number of Mounting Holes | 4 |
| Mounting Bolts | 3/4 Inch |
| Insert Part Number | DU-SD-215 |
| Housing Configuration | 2 Piece Split |
| Housing Material | Cast Iron |
| Expansion / Non-expansion | Non-expansion |
| Seals | Dual Piston Ring Seal |
| Pilot Configuration | No Pilot |
