FREE SHIPPING on orders over $100
Offer price breaks when you order a larger quantify.
In Stock
Leading time would be depends on our work efficiency and delivery schedule, usually within 2 business days.
Specifications

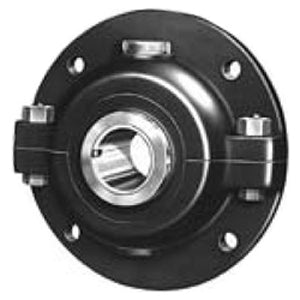

| title | F4B-SD-315 |
| price | $ 10,641.67 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | ABB MOTORS AND MECHANICAL INC |
| Weight / kgm | 104.42 |
| Inch - Metric | Inch |
| Brand | DODGE |
| Weight / LBS | 230 |
| Bore | 3.938 Inch | 100.025 Millimeter |
| EAN | 0782475054541 |
| Other Features | Double Row | Special Duty |
| Relubricatable | Yes |
| Global Part Number GPN | 551458 |
| Mounting Method | Tapered Adapter Sleeve |
| Length Thru Bore | 8.5 Inch | 215.9 Millimeter |
| Cartridge Pilot Diameter | 0 Inch | 0 Millimeter |
| Cartridge Pilot Depth | 0 Inch | 0 Millimeter |
| Bolt Spacing | 11.137 Inch | 282.88 Millimeter |
| Nominal Bolt Circle Diameter Round | 15.7 Inch | 398.8 Millimeter |
| Housing Style | 4 Bolt Round Flange Block |
| Number of Mounting Holes | 4 |
| Mounting Bolts | 1 Inch |
| Insert Part Number | DU-SD-315 |
| Housing Configuration | 2 Piece Split |
| Housing Material | Cast Iron |
| Expansion / Non-expansion | Non-expansion |
| Seals | Dual Piston Ring Seal |
| Pilot Configuration | No Pilot |
