Specifications

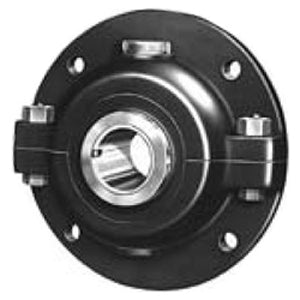

| title | F4B-SD-407E |
| price | $ 14,012.26 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | ABB MOTORS AND MECHANICAL INC |
| Weight / kgm | 147.55 |
| Inch - Metric | Inch |
| Brand | DODGE |
| Weight / LBS | 325 |
| Bore | 4.438 Inch | 112.725 Millimeter |
| EAN | 0782475054657 |
| Other Features | Double Row | Special Duty |
| Relubricatable | Yes |
| Global Part Number GPN | 551439 |
| Mounting Method | Tapered Adapter Sleeve |
| Length Thru Bore | 9.5 Inch | 241.3 Millimeter |
| Cartridge Pilot Diameter | 0 Inch | 0 Millimeter |
| Cartridge Pilot Depth | 0 Inch | 0 Millimeter |
| Bolt Spacing | 12.021 Inch | 305.333 Millimeter |
| Nominal Bolt Circle Diameter Round | 17 Inch | 431.8 Millimeter |
| Housing Style | 4 Bolt Round Flange Block |
| Number of Mounting Holes | 4 |
| Mounting Bolts | 1-1/8 Inch |
| Insert Part Number | S1U-SD-407 |
| Housing Configuration | 2 Piece Split |
| Housing Material | Cast Iron |
| Expansion / Non-expansion | Expansion |
| Seals | Dual Piston Ring Seal |
| Pilot Configuration | No Pilot |
