Specifications

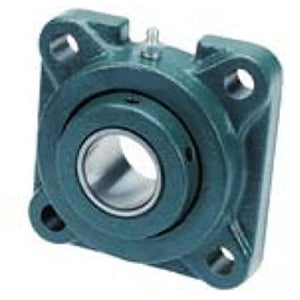

| title | F4B-UN2-400E |
| price | $ 3,802.60 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | ABB MOTORS AND MECHANICAL INC |
| Weight / kgm | 18.614 |
| Inch - Metric | Inch |
| Brand | DODGE |
| Weight / LBS | 41 |
| Bore | 4 Inch | 101.6 Millimeter |
| EAN | 0782475773848 |
| Other Features | Double Row | With Set Screw |
| Relubricatable | Yes |
| Global Part Number GPN | 551420 |
| Mounting Method | Concentric Collar |
| Length Thru Bore | 3.328 Inch | 84.531 Millimeter |
| Cartridge Pilot Diameter | 0 Inch | 0 Millimeter |
| Cartridge Pilot Depth | 0 Inch | 0 Millimeter |
| Bolt Spacing | 7.625 Inch | 193.675 Millimeter |
| Nominal Bolt Circle Diameter Round | 10.7 Inch | 272.8 Millimeter |
| Housing Style | 4 Bolt Square Flange Block |
| Number of Mounting Holes | 4 |
| Mounting Bolts | 7/8 Inch |
| Insert Part Number | BRG-UN2-400 |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Iron |
| Expansion / Non-expansion | Expansion |
| Seals | Single Lip Contact |
| Pilot Configuration | No Pilot |
