Specifications

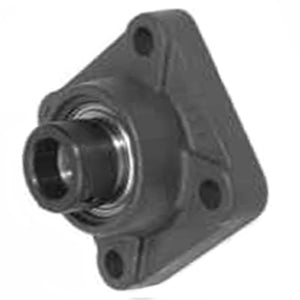

| title | FB220UR X 1 |
| price | $ 29.75 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | REGAL BELOIT |
| Weight / kgm | 0.82 |
| Inch - Metric | Inch |
| Brand | HUB CITY |
| Weight / LBS | 1.8 |
| Bore | 1 Inch | 25.4 Millimeter |
| EAN | 0662798361765 |
| Other Features | Single Row | Spherical | Anti Rotation Pin | Has Trash Guard | With Set Screw |
| Relubricatable | Yes |
| Global Part Number GPN | 546143 |
| Mounting Method | Eccentric Collar |
| Length Thru Bore | 1.217 Inch | 30.9 Millimeter |
| Cartridge Pilot Diameter | 0 Inch | 0 Millimeter |
| Cartridge Pilot Depth | 0 Inch | 0 Millimeter |
| Bolt Spacing | 2.75 Inch | 69.85 Millimeter |
| Nominal Bolt Circle Diameter Round | 4 Inch | 101.6 Millimeter |
| Housing Style | 4 Bolt Square Flange Block |
| Number of Mounting Holes | 4 |
| Mounting Bolts | 7/16 Inch |
| Insert Part Number | B220R |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Iron |
| Expansion / Non-expansion | Non-expansion |
| Seals | Nitrile Rubber |
| Pilot Configuration | No Pilot |
