Specifications

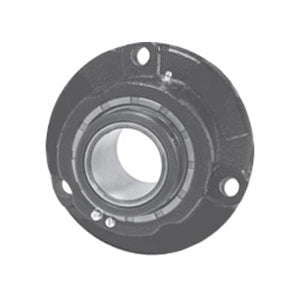

| title | FB22423H |
| price | $ 278.67 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | REXNORD |
| Weight / kgm | 3.18 |
| Inch - Metric | Inch |
| Brand | LINK BELT |
| Weight / LBS | 7 |
| Bore | 1.438 Inch | 36.525 Millimeter |
| EAN | 0662327026318 |
| Other Features | Double Row | Single Collar | Extended Inner Race | With Set Screw |
| Relubricatable | Yes |
| Global Part Number GPN | 558898 |
| Mounting Method | Concentric Collar |
| Length Thru Bore | 2.875 Inch | 73.02 Millimeter |
| Cartridge Pilot Diameter | 0 Inch | 0 Millimeter |
| Cartridge Pilot Depth | 0 Inch | 0 Millimeter |
| Bolt Spacing | 4.3 Inch | 110 Millimeter |
| Nominal Bolt Circle Diameter Round | 5 Inch | 127 Millimeter |
| Housing Style | 3 Bolt Round Flange Block |
| Number of Mounting Holes | 3 |
| Mounting Bolts | 1/2 Inch |
| Insert Part Number | B22423HL |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Iron |
| Expansion / Non-expansion | Non-expansion |
| Seals | Floating Labyrinth |
| Pilot Configuration | No Pilot |
