Specifications

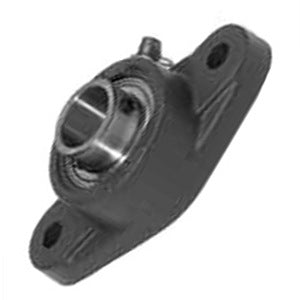

| title | FB230 X 1-7/16 |
| price | $ 106.37 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | REGAL BELOIT |
| Weight / kgm | 1.814 |
| Inch - Metric | Inch |
| Brand | HUB CITY |
| Weight / LBS | 3.1 |
| Bore | 1.438 Inch | 36.525 Millimeter |
| EAN | 0662798253657 |
| Other Features | Single Row | Spherical | Has Trash Guard | With Set Screw |
| Relubricatable | Yes |
| Global Part Number GPN | 548415 |
| Mounting Method | Eccentric Collar |
| Length Thru Bore | 1.531 Inch | 38.9 Millimeter |
| Cartridge Pilot Diameter | 0 Inch | 0 Millimeter |
| Cartridge Pilot Depth | 0 Inch | 0 Millimeter |
| Bolt Spacing | 5.125 Inch | 130.18 Millimeter |
| Nominal Bolt Circle Diameter Round | 5.1 Inch | 130 Millimeter |
| Housing Style | 2 Bolt Flange Block |
| Number of Mounting Holes | 2 |
| Mounting Bolts | 1/2 Inch |
| Insert Part Number | B220 |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Iron |
| Expansion / Non-expansion | Non-expansion |
| Seals | Nitrile Rubber |
| Pilot Configuration | No Pilot |
