FREE SHIPPING on orders over $100
Offer price breaks when you order a larger quantify.
In Stock
Leading time would be depends on our work efficiency and delivery schedule, usually within 2 business days.
Specifications

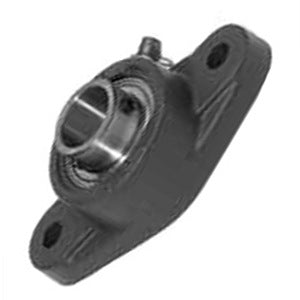

title | FB230UR X 1-3/4 |
price | $ 61.19 / each |
Category | Flange Block Bearings |
UNSPSC | 31171501 |
Harmonized Tariff Code | 8483.20.40.40 |
Manufacturer Name | HUB CITY |
Inch - Metric | Inch |
Brand | HUB CITY |
Weight / LBS | 4.3 |
Bore | 1.75 Inch | 44.45 Millimeter |
EAN | 662798362045 |
Other Features | Single Row | Spherical | Anti Rotation Pin | Has Trash Guard | With Set Screw |
Relubricatable | Yes |
Global Part Number GPN | 548384 |
Mounting Method | Eccentric Collar |
Length Thru Bore | 1.717 Inch | 43.612 Millimeter |
Cartridge Pilot Diameter | 0 Inch | 0 Millimeter |
Cartridge Pilot Depth | 0 Inch | 0 Millimeter |
Bolt Spacing | 5.828 Inch | 148.031 Millimeter |
Nominal Bolt Circle Diameter Round | 5.8 Inch | 148 Millimeter |
Housing Style | 2 Bolt Flange Block |
Number of Mounting Holes | 2 |
Mounting Bolts | 1/2 Inch |
Insert Part Number | B220R |
Housing Configuration | 1 Piece Solid |
Housing Material | Cast Iron |
Expansion / Non-expansion | Non-expansion |
Seals | Nitrile Rubber |
Pilot Configuration | No Pilot |
