Specifications

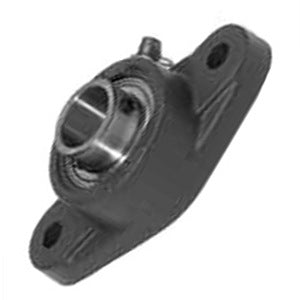

| title | FB260 X 1-5/8 |
| price | $ 157.57 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | HUB CITY |
| Inch - Metric | Inch |
| Brand | HUB CITY |
| Weight / LBS | 4.5 |
| Bore | 1.625 Inch | 41.275 Millimeter |
| EAN | 662798254197 |
| Other Features | Single Row | Spherical | Has Trash Guard |
| Relubricatable | Yes |
| Global Part Number GPN | 548119 |
| Mounting Method | Set Screw |
| Length Thru Bore | 1.634 Inch | 41.5 Millimeter |
| Cartridge Pilot Diameter | 0 Inch | 0 Millimeter |
| Cartridge Pilot Depth | 0 Inch | 0 Millimeter |
| Bolt Spacing | 5.828 Inch | 148.031 Millimeter |
| Nominal Bolt Circle Diameter Round | 5.8 Inch | 148 Millimeter |
| Housing Style | 2 Bolt Flange Block |
| Number of Mounting Holes | 2 |
| Mounting Bolts | 1/2 Inch |
| Insert Part Number | B250 |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Iron |
| Expansion / Non-expansion | Non-expansion |
| Seals | Nitrile Rubber |
| Pilot Configuration | No Pilot |
