Specifications

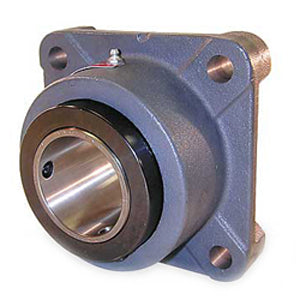

| title | FBE920X 3 7/16 |
| price | $ 891.60 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | REGAL BELOIT |
| Weight / kgm | 21.996 |
| Inch - Metric | Inch |
| Brand | BROWNING |
| Weight / LBS | 46 |
| Bore | 3.438 Inch | 87.325 Millimeter |
| EAN | 0662289458790 |
| Other Features | Double Row | Temperature Range From -20 to 200 Degree F | Has Flinger |
| Relubricatable | Yes |
| Global Part Number GPN | 22140 |
| Mounting Method | Concentric Collar |
| Length Thru Bore | 5 Inch | 127 Millimeter |
| Cartridge Pilot Diameter | 0 Inch | 0 Millimeter |
| Cartridge Pilot Depth | 0 Inch | 0 Millimeter |
| Bolt Spacing | 7 Inch | 177.8 Millimeter |
| Nominal Bolt Circle Diameter Round | 9.9 Inch | 251.7 Millimeter |
| Housing Style | 4 Bolt Square Flange Block |
| Number of Mounting Holes | 4 |
| Mounting Bolts | 3/4 Inch |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Iron |
| Expansion / Non-expansion | Non-expansion |
| Seals | Contact Seal |
| Pilot Configuration | No Pilot |
