FREE SHIPPING on orders over $100
Offer price breaks when you order a larger quantify.
In Stock
Leading time would be depends on our work efficiency and delivery schedule, usually within 2 business days.
Specifications

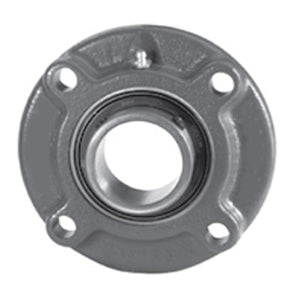

| title | FC3S220FF |
| price | $ 151.54 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | LINK BELT |
| Inch - Metric | Inch |
| Brand | LINK BELT |
| Weight / LBS | 3.13 |
| Bore | 1.25 Inch | 31.75 Millimeter |
| EAN | 662864725415 |
| Other Features | Single Row | Standard Duty | 50% Grease Fill | Flingers Only |
| Relubricatable | Yes |
| Global Part Number GPN | 558037 |
| Mounting Method | Set Screw |
| Length Thru Bore | 1.563 Inch | 39.69 Millimeter |
| Cartridge Pilot Diameter | 3.375 Inch | 85.725 Millimeter |
| Cartridge Pilot Depth | 0.375 Inch | 9.525 Millimeter |
| Bolt Spacing | 2.9 Inch | 74.1 Millimeter |
| Nominal Bolt Circle Diameter Round | 4.1 Inch | 105 Millimeter |
| Housing Style | 4 Bolt Round Flange Cartridge |
| Number of Mounting Holes | 4 |
| Mounting Bolts | 7/16 Inch |
| Insert Part Number | MB251-14-FFPA |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Iron |
| Expansion / Non-expansion | Non-expansion |
| Seals | Free Running FF |
| Pilot Configuration | With Pilot |
