Specifications

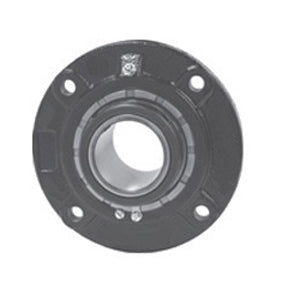

| title | FCB22419E7 |
| price | $ 345.80 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | LINK BELT |
| Inch - Metric | Inch |
| Brand | LINK BELT |
| Weight / LBS | 5 |
| Bore | 1.188 Inch | 30.175 Millimeter |
| EAN | 793699539691 |
| Other Features | Double Row | Single Collar | Extended Inner Race | With Set Screw |
| Relubricatable | Yes |
| Global Part Number GPN | 559028 |
| Mounting Method | Concentric Collar |
| Length Thru Bore | 2.688 Inch | 68.275 Millimeter |
| Cartridge Pilot Diameter | 3.375 Inch | 85.725 Millimeter |
| Cartridge Pilot Depth | 0.75 Inch | 19.05 Millimeter |
| Bolt Spacing | 2.922 Inch | 74.219 Millimeter |
| Nominal Bolt Circle Diameter Round | 4.1 Inch | 105 Millimeter |
| Housing Style | 4 Bolt Round Flange Cartridge |
| Number of Mounting Holes | 4 |
| Mounting Bolts | 3/8 Inch |
| Insert Part Number | B22419E7L |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Iron |
| Expansion / Non-expansion | Non-expansion |
| Seals | Triple Lip Contact |
| Pilot Configuration | With Pilot |
