Specifications

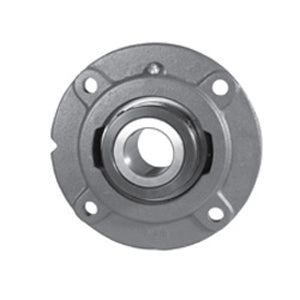

| title | FCEU331 |
| price | $ 702.35 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | REXNORD |
| Weight / kgm | 6.81 |
| Inch - Metric | Inch |
| Brand | LINK BELT |
| Weight / LBS | 15 |
| Bore | 1.938 Inch | 49.225 Millimeter |
| EAN | 0662327707958 |
| Other Features | Single Row | Spherical | Heavy Duty |
| Relubricatable | Yes |
| Global Part Number GPN | 244410 |
| Mounting Method | Set Screw |
| Length Thru Bore | 2.813 Inch | 71.45 Millimeter |
| Cartridge Pilot Diameter | 6 Inch | 152.4 Millimeter |
| Cartridge Pilot Depth | 0.875 Inch | 22.225 Millimeter |
| Bolt Spacing | 4.9 Inch | 125.2 Millimeter |
| Nominal Bolt Circle Diameter Round | 6.9 Inch | 175.3 Millimeter |
| Housing Style | 4 Bolt Round Flange Cartridge |
| Number of Mounting Holes | 4 |
| Mounting Bolts | 1/2 Inch |
| Insert Part Number | UG331L |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Iron |
| Expansion / Non-expansion | Expansion |
| Seals | Steel Clad Clearance |
| Pilot Configuration | With Pilot |
