Specifications

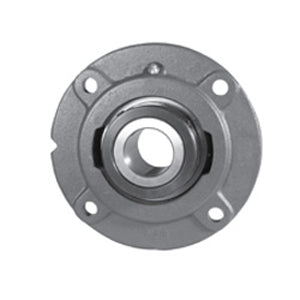

| title | FCEU339 |
| price | $ 1,163.75 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | LINK BELT |
| Inch - Metric | Inch |
| Brand | LINK BELT |
| Weight / LBS | 23.5 |
| Bore | 2.438 Inch | 61.925 Millimeter |
| EAN | 662327708269 |
| Other Features | Single Row | Spherical | Heavy Duty |
| Relubricatable | Yes |
| Global Part Number GPN | 244450 |
| Mounting Method | Set Screw |
| Length Thru Bore | 3.313 Inch | 84.14 Millimeter |
| Cartridge Pilot Diameter | 6.875 Inch | 174.625 Millimeter |
| Cartridge Pilot Depth | 0.938 Inch | 23.825 Millimeter |
| Bolt Spacing | 5.7 Inch | 144.8 Millimeter |
| Nominal Bolt Circle Diameter Round | 8.1 Inch | 206.6 Millimeter |
| Housing Style | 4 Bolt Round Flange Cartridge |
| Number of Mounting Holes | 4 |
| Mounting Bolts | 5/8 Inch |
| Insert Part Number | UG339L |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Iron |
| Expansion / Non-expansion | Expansion |
| Seals | Steel Clad Clearance |
| Pilot Configuration | With Pilot |
