FREE SHIPPING on orders over $100
Offer price breaks when you order a larger quantify.
In Stock
Leading time would be depends on our work efficiency and delivery schedule, usually within 2 business days.
Specifications

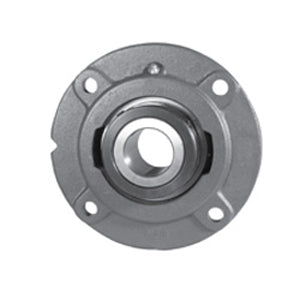

| title | FCEU363 |
| price | $ 5,260.69 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | LINK BELT |
| Inch - Metric | Inch |
| Brand | LINK BELT |
| Weight / LBS | 85 |
| Bore | 3.938 Inch | 100.025 Millimeter |
| EAN | 662327963071 |
| Other Features | Single Row | Spherical | Heavy Duty |
| Relubricatable | Yes |
| Global Part Number GPN | 244481 |
| Mounting Method | Set Screw |
| Length Thru Bore | 5.563 Inch | 141.3 Millimeter |
| Cartridge Pilot Diameter | 11 Inch | 279.4 Millimeter |
| Cartridge Pilot Depth | 1.375 Inch | 34.925 Millimeter |
| Bolt Spacing | 8.8 Inch | 223.5 Millimeter |
| Nominal Bolt Circle Diameter Round | 12.4 Inch | 315 Millimeter |
| Housing Style | 4 Bolt Round Flange Cartridge |
| Number of Mounting Holes | 4 |
| Mounting Bolts | 3/4 Inch |
| Insert Part Number | UG363L |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Iron |
| Expansion / Non-expansion | Expansion |
| Seals | Steel Clad Clearance |
| Pilot Configuration | With Pilot |
