Specifications

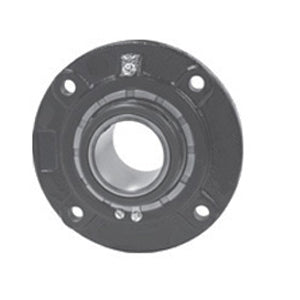

| title | FCRB22435H |
| price | $ 663.49 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | LINK BELT |
| Inch - Metric | Inch |
| Brand | LINK BELT |
| Weight / LBS | 12 |
| Bore | 2.188 Inch | 55.575 Millimeter |
| EAN | 662327422790 |
| Other Features | Double Row | Single Collar | Extended Inner Race | Collar Opposite Cover | With Set Screw |
| Relubricatable | Yes |
| Mounting Method | Concentric Collar |
| Length Thru Bore | 3.313 Inch | 84.14 Millimeter |
| Cartridge Pilot Diameter | 5 Inch | 127 Millimeter |
| Cartridge Pilot Depth | 1.563 Inch | 39.7 Millimeter |
| Bolt Spacing | 4.25 Inch | 107.95 Millimeter |
| Nominal Bolt Circle Diameter Round | 6 Inch | 152 Millimeter |
| Housing Style | 4 Bolt Round Flange Cartridge |
| Number of Mounting Holes | 4 |
| Mounting Bolts | 1/2 Inch |
| Insert Part Number | B22435HL |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Iron |
| Expansion / Non-expansion | Non-expansion |
| Seals | Floating Labyrinth |
| Pilot Configuration | With Pilot |
