Specifications

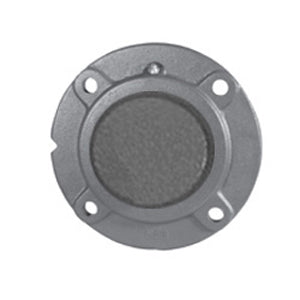

| title | FCU312C |
| price | $ 318.84 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | LINK BELT |
| Inch - Metric | Inch |
| Brand | LINK BELT |
| Weight / LBS | 3 |
| Bore | 0.75 Inch | 19.05 Millimeter |
| EAN | 662327977221 |
| Other Features | Single Row | Spherical | Heavy Duty | Closed End |
| Relubricatable | Yes |
| Global Part Number GPN | 556496 |
| Mounting Method | Set Screw |
| Length Thru Bore | 1.469 Inch | 37.3 Millimeter |
| Cartridge Pilot Diameter | 3.125 Inch | 79.375 Millimeter |
| Cartridge Pilot Depth | 0.5 Inch | 12.7 Millimeter |
| Bolt Spacing | 2.7 Inch | 68.6 Millimeter |
| Nominal Bolt Circle Diameter Round | 3.8 Inch | 96 Millimeter |
| Housing Style | 4 Bolt Round Flange Cartridge |
| Number of Mounting Holes | 4 |
| Mounting Bolts | 5/16 Inch |
| Insert Part Number | UG312L |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Iron |
| Expansion / Non-expansion | Non-expansion |
| Seals | Steel Clad Clearance |
| Pilot Configuration | With Pilot |
