Specifications

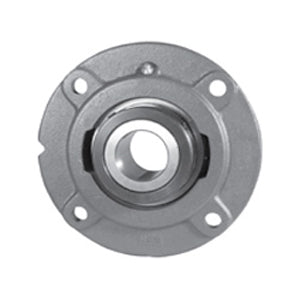

| title | FCU344 |
| price | $ 1,257.44 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | LINK BELT |
| Inch - Metric | Inch |
| Brand | LINK BELT |
| Weight / LBS | 32.5 |
| Bore | 2.75 Inch | 69.85 Millimeter |
| EAN | 662327735210 |
| Other Features | Single Row | Spherical | Heavy Duty |
| Relubricatable | Yes |
| Global Part Number GPN | 244461 |
| Mounting Method | Set Screw |
| Length Thru Bore | 3.813 Inch | 96.85 Millimeter |
| Cartridge Pilot Diameter | 7.75 Inch | 196.85 Millimeter |
| Cartridge Pilot Depth | 1.125 Inch | 28.575 Millimeter |
| Bolt Spacing | 6.4 Inch | 162.6 Millimeter |
| Nominal Bolt Circle Diameter Round | 9.1 Inch | 231.1 Millimeter |
| Housing Style | 4 Bolt Round Flange Cartridge |
| Number of Mounting Holes | 4 |
| Mounting Bolts | 5/8 Inch |
| Insert Part Number | UG344L |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Iron |
| Expansion / Non-expansion | Non-expansion |
| Seals | Steel Clad Clearance |
| Pilot Configuration | With Pilot |
