Specifications

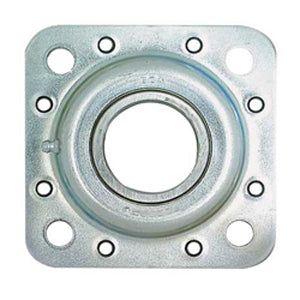

| title | FD209RJH |
| price | $ 80.89 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | NTN |
| Inch - Metric | Inch |
| Brand | NTN |
| Bore | 1.77 Inch | 44.958 Millimeter |
| EAN | 4547359473070 |
| Other Features | Single Row |
| Relubricatable | Yes |
| Global Part Number GPN | 552476 |
| Mounting Method | Shaft Mount |
| Length Thru Bore | 1.687 Inch | 42.85 Millimeter |
| Cartridge Pilot Diameter | 0 Inch | 0 Millimeter |
| Cartridge Pilot Depth | 0 Inch | 0 Millimeter |
| Bolt Spacing | 3.5 Inch | 88.9 Millimeter |
| Nominal Bolt Circle Diameter Round | 4.9 Inch | 125.7 Millimeter |
| Housing Style | 4 Bolt Square Flange Block |
| Number of Mounting Holes | 4 |
| Insert Part Number | SBX09A40LLSC3Q1 |
| Housing Configuration | 2 Piece Split |
| Housing Material | Stamped Steel |
| Expansion / Non-expansion | Non-expansion |
| Seals | Triple Lip Contact |
| Pilot Configuration | No Pilot |
