Specifications

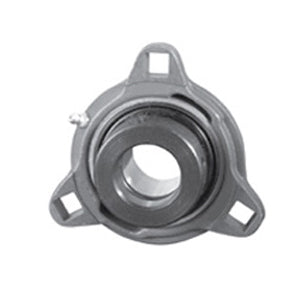

| title | FRY2N16E3 |
| price | $ 124.66 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | LINK BELT |
| Inch - Metric | Inch |
| Brand | LINK BELT |
| Weight / LBS | 1 |
| Bore | 1 Inch | 25.4 Millimeter |
| EAN | 793699132878 |
| Other Features | Single Row | Spherical | Standard Duty | Wide Inner Race | Inboard Mount |
| Relubricatable | No |
| Global Part Number GPN | 556171 |
| Mounting Method | Eccentric Collar |
| Length Thru Bore | 1.75 Inch | 44.45 Millimeter |
| Cartridge Pilot Diameter | 0 Inch | 0 Millimeter |
| Cartridge Pilot Depth | 0 Inch | 0 Millimeter |
| Bolt Spacing | 2.6 Inch | 66 Millimeter |
| Nominal Bolt Circle Diameter Round | 3 Inch | 76 Millimeter |
| Housing Style | 3 Bolt Flange Block |
| Number of Mounting Holes | 3 |
| Mounting Bolts | 5/16 Inch |
| Insert Part Number | Y216E3L |
| Housing Configuration | 1 Piece Solid |
| Housing Material | High Test Iron |
| Expansion / Non-expansion | Non-expansion |
| Seals | Triple Lip Contact |
| Pilot Configuration | No Pilot |
