Specifications

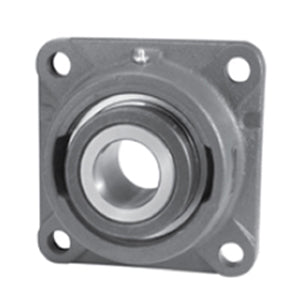

| title | FU323 |
| price | $ 272.31 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | REXNORD |
| Weight / kgm | 2.72 |
| Inch - Metric | Inch |
| Brand | LINK BELT |
| Weight / LBS | 6 |
| Bore | 1.438 Inch | 36.525 Millimeter |
| EAN | 0662327734565 |
| Other Features | Single Row | Spherical | Heavy Duty |
| Relubricatable | Yes |
| Global Part Number GPN | 244807 |
| Mounting Method | Set Screw |
| Length Thru Bore | 2.094 Inch | 53.2 Millimeter |
| Cartridge Pilot Diameter | 0 Inch | 0 Millimeter |
| Cartridge Pilot Depth | 0 Inch | 0 Millimeter |
| Bolt Spacing | 4 Inch | 102 Millimeter |
| Nominal Bolt Circle Diameter Round | 5.7 Inch | 144 Millimeter |
| Housing Style | 4 Bolt Square Flange Block |
| Number of Mounting Holes | 4 |
| Mounting Bolts | 1/2 Inch |
| Insert Part Number | UG323L |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Iron |
| Expansion / Non-expansion | Non-expansion |
| Seals | Steel Clad Clearance |
| Pilot Configuration | No Pilot |
