FREE SHIPPING on orders over $100
Offer price breaks when you order a larger quantify.
In Stock
Leading time would be depends on our work efficiency and delivery schedule, usually within 2 business days.
Specifications

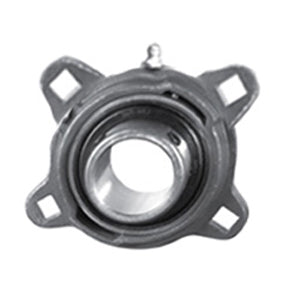

| title | FWG 224 E |
| price | $ 132.96 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | REXNORD |
| Weight / kgm | 1.27 |
| Inch - Metric | Inch |
| Brand | LINK BELT |
| Weight / LBS | 2.8 |
| Bore | 1.5 Inch | 38.1 Millimeter |
| Other Features | Single Row | Spherical | Intermediate Duty | Extended Inner Race |
| Relubricatable | Yes |
| Global Part Number GPN | 244002 |
| Mounting Method | Eccentric Collar |
| Length Thru Bore | 1.719 Inch | 43.663 Millimeter |
| Cartridge Pilot Diameter | 0 Inch | 0 Millimeter |
| Cartridge Pilot Depth | 0 Inch | 0 Millimeter |
| Bolt Spacing | 3.3 Inch | 84.9 Millimeter |
| Nominal Bolt Circle Diameter Round | 4.7 Inch | 120 Millimeter |
| Housing Style | 4 Bolt Flange Block |
| Number of Mounting Holes | 4 |
| Mounting Bolts | 1/2 Inch |
| Insert Part Number | WG224EL |
| Housing Configuration | 1 Piece Solid |
| Housing Material | High Test Iron |
| Expansion / Non-expansion | Non-expansion |
| Seals | Single Lip Contact |
| Pilot Configuration | No Pilot |
