FREE SHIPPING on orders over $100
Offer price breaks when you order a larger quantify.
In Stock
Leading time would be depends on our work efficiency and delivery schedule, usually within 2 business days.
Specifications

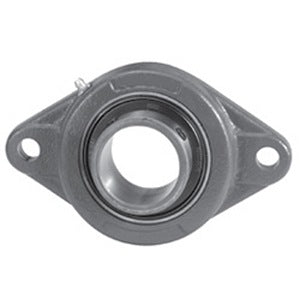

| title | FX3S220E1 |
| price | $ 92.42 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | REXNORD |
| Weight / kgm | 1.22 |
| Inch - Metric | Inch |
| Brand | LINK BELT |
| Weight / LBS | 2.69 |
| Bore | 1.25 Inch | 31.75 Millimeter |
| EAN | 0793699295030 |
| Other Features | Single Row | Standard Duty | Has Flinger |
| Relubricatable | Yes |
| Global Part Number GPN | 559820 |
| Mounting Method | Set Screw |
| Length Thru Bore | 1.563 Inch | 39.69 Millimeter |
| Cartridge Pilot Diameter | 0 Inch | 0 Millimeter |
| Cartridge Pilot Depth | 0 Inch | 0 Millimeter |
| Bolt Spacing | 5.125 Inch | 130.18 Millimeter |
| Nominal Bolt Circle Diameter Round | 5.1 Inch | 130 Millimeter |
| Housing Style | 2 Bolt Flange Block |
| Number of Mounting Holes | 2 |
| Mounting Bolts | 1/2 Inch |
| Insert Part Number | MB251-14-E1PA |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Iron |
| Expansion / Non-expansion | Non-expansion |
| Seals | Viton |
| Pilot Configuration | No Pilot |
