Specifications

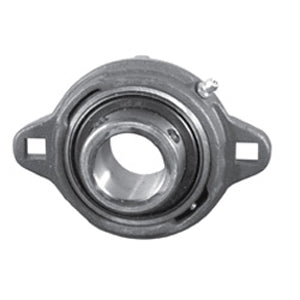

| title | FXRUG211JHK75 |
| price | $ 144.72 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | LINK BELT |
| Inch - Metric | Inch |
| Brand | LINK BELT |
| Weight / LBS | 0.6 |
| Bore | 0.688 Inch | 17.475 Millimeter |
| EAN | 662327453992 |
| Other Features | Single Row | Spherical | Standard Duty | Wide Inner Race | Inboard Mount |
| Relubricatable | Yes |
| Global Part Number GPN | 244266 |
| Mounting Method | Set Screw |
| Length Thru Bore | 1.094 Inch | 27.8 Millimeter |
| Cartridge Pilot Diameter | 0 Inch | 0 Millimeter |
| Cartridge Pilot Depth | 0 Inch | 0 Millimeter |
| Bolt Spacing | 2.5 Inch | 63.5 Millimeter |
| Nominal Bolt Circle Diameter Round | 2.5 Inch | 64 Millimeter |
| Housing Style | 2 Bolt Flange Block |
| Number of Mounting Holes | 2 |
| Mounting Bolts | 1/4 Inch |
| Insert Part Number | UG211HL |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Nickel Coated High Test Iron |
| Expansion / Non-expansion | Non-expansion |
| Seals | Floating Labyrinth |
| Pilot Configuration | No Pilot |
