Specifications

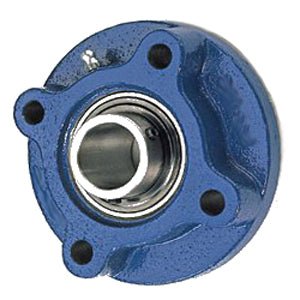

| title | FYC 35 TF |
| price | $ 114.42 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | SKF |
| Weight / kgm | 1.55 |
| Inch - Metric | Metric |
| Brand | SKF |
| Weight / LBS | 3.42 |
| Bore | 1.378 Inch | 35 Millimeter |
| EAN | 7316570199918 |
| Other Features | Single Row | Wide Inner Race | Open End | Has Flinger | Y Bearing |
| Relubricatable | Yes |
| Global Part Number GPN | 555094 |
| Mounting Method | Set Screw |
| Length Thru Bore | 1.689 Inch | 42.9 Millimeter |
| Cartridge Pilot Diameter | 3.543 Inch | 90 Millimeter |
| Cartridge Pilot Depth | 0.315 Inch | 8 Millimeter |
| Bolt Spacing | 3.063 Inch | 77.8 Millimeter |
| Nominal Bolt Circle Diameter Round | 4.3 Inch | 110 Millimeter |
| Housing Style | 4 Bolt Round Flange Cartridge |
| Number of Mounting Holes | 4 |
| Mounting Bolts | 12 Millimeter |
| Insert Part Number | YAR 207-2F |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Iron |
| Expansion / Non-expansion | Non-expansion |
| Seals | M Seal |
| Pilot Configuration | With Pilot |
