Specifications

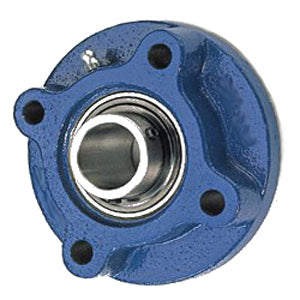

| title | FYC 65 TF |
| price | $ 313.44 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | SKF |
| Inch - Metric | Metric |
| Brand | SKF |
| Weight / LBS | 12.6 |
| Bore | 2.559 Inch | 65 Millimeter |
| EAN | 7316570157666 |
| Other Features | Single Row | Wide Inner Race | Open End | Has Flinger | Y Bearing |
| Relubricatable | Yes |
| Global Part Number GPN | 555090 |
| Mounting Method | Set Screw |
| Length Thru Bore | 2.689 Inch | 68.3 Millimeter |
| Cartridge Pilot Diameter | 5.709 Inch | 145 Millimeter |
| Cartridge Pilot Depth | 0.551 Inch | 14 Millimeter |
| Bolt Spacing | 4.732 Inch | 120.2 Millimeter |
| Nominal Bolt Circle Diameter Round | 6.7 Inch | 170 Millimeter |
| Housing Style | 4 Bolt Round Flange Cartridge |
| Number of Mounting Holes | 4 |
| Mounting Bolts | 16 Millimeter |
| Insert Part Number | YAR 213-2F |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Iron |
| Expansion / Non-expansion | Non-expansion |
| Seals | M Seal |
| Pilot Configuration | With Pilot |
