FREE SHIPPING on orders over $100
Offer price breaks when you order a larger quantify.
In Stock
Leading time would be depends on our work efficiency and delivery schedule, usually within 2 business days.
Specifications

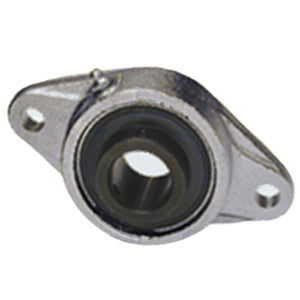

| title | HUCNPFL 205 16 |
| price | $ 61.54 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | IPTCI |
| Inch - Metric | Inch |
| Brand | IPTCI |
| Weight / LBS | 1.5 |
| Bore | 1 Inch | 25.4 Millimeter |
| Other Features | Single Row | Spherical | Black Oxide Finish | Specially Heat Treated Ring | High Temperature Range From -45 to 450 Degre |
| Relubricatable | Yes |
| Global Part Number GPN | 547907 |
| Mounting Method | Set Screw |
| Length Thru Bore | 1.339 Inch | 34 Millimeter |
| Cartridge Pilot Diameter | 0 Inch | 0 Millimeter |
| Cartridge Pilot Depth | 0 Inch | 0 Millimeter |
| Bolt Spacing | 3.891 Inch | 98.83 Millimeter |
| Nominal Bolt Circle Diameter Round | 3.9 Inch | 99 Millimeter |
| Housing Style | 2 Bolt Flange Block |
| Number of Mounting Holes | 2 |
| Mounting Bolts | 3/8 Inch |
| Insert Part Number | HUC205-16 |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Nickel Coated Cast Iron |
| Expansion / Non-expansion | Expansion |
| Seals | B Seal |
| Pilot Configuration | No Pilot |
