FREE SHIPPING on orders over $100
Offer price breaks when you order a larger quantify.
In Stock
Leading time would be depends on our work efficiency and delivery schedule, usually within 2 business days.
Specifications

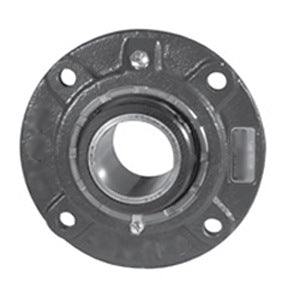

| title | KBR5200G |
| price | $ 776.61 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | REXNORD |
| Weight / kgm | 6.22 |
| Inch - Metric | Inch |
| Brand | REXNORD |
| Weight / LBS | 13.7 |
| Bore | 2 Inch | 50.8 Millimeter |
| EAN | 0793699256383 |
| Other Features | Double Row | Double Collar | Face Locked Threaded Cover | With Set Screw |
| Relubricatable | Yes |
| Global Part Number GPN | 553059 |
| Mounting Method | Concentric Collar |
| Length Thru Bore | 4.125 Inch | 104.775 Millimeter |
| Cartridge Pilot Diameter | 5 Inch | 127 Millimeter |
| Cartridge Pilot Depth | 1 Inch | 25.4 Millimeter |
| Bolt Spacing | 4.25 Inch | 107.95 Millimeter |
| Nominal Bolt Circle Diameter Round | 6.1 Inch | 154.9 Millimeter |
| Housing Style | 4 Bolt Round Flange Cartridge |
| Number of Mounting Holes | 4 |
| Mounting Bolts | 1/2 Inch |
| Insert Part Number | 5200U |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Iron |
| Expansion / Non-expansion | Non-expansion |
| Seals | Light Contact |
| Pilot Configuration | With Pilot |
