Specifications

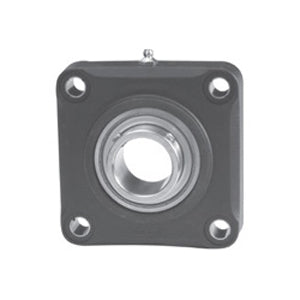

| title | KFS2E20K13 |
| price | $ 147.02 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | LINK BELT |
| Inch - Metric | Inch |
| Brand | LINK BELT |
| Weight / LBS | 1.4 |
| Bore | 1.25 Inch | 31.75 Millimeter |
| EAN | 793699691344 |
| Other Features | Single Row | Spherical | Intermediate Duty | Black Housing | Open End | Extended Inner Race | Food Grade Lubrication |
| Relubricatable | Yes |
| Global Part Number GPN | 556594 |
| Mounting Method | Set Screw |
| Length Thru Bore | 1.344 Inch | 34.13 Millimeter |
| Cartridge Pilot Diameter | 0 Inch | 0 Millimeter |
| Cartridge Pilot Depth | 0 Inch | 0 Millimeter |
| Bolt Spacing | 3.27 Inch | 83.058 Millimeter |
| Nominal Bolt Circle Diameter Round | 4.7 Inch | 120 Millimeter |
| Housing Style | 4 Bolt Square Flange Block |
| Number of Mounting Holes | 4 |
| Mounting Bolts | 3/8 Inch |
| Insert Part Number | SG2E20EL |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Polymer |
| Expansion / Non-expansion | Non-expansion |
| Seals | Single Lip Contact |
| Pilot Configuration | No Pilot |
