Specifications

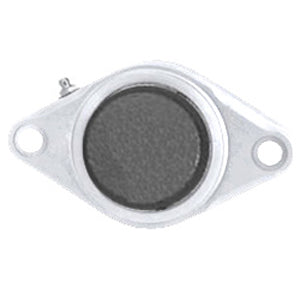

| title | KLFXS2M40DC |
| price | $ 201.65 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | LINK BELT |
| Inch - Metric | Metric |
| Brand | LINK BELT |
| Weight / LBS | 1.984 |
| Bore | 1.575 Inch | 40 Millimeter |
| EAN | 793699060775 |
| Other Features | Single Row | Spherical | Intermediate Duty | White Housing | Closed End | Extended Inner Race | Food Grade Lubrication |
| Relubricatable | Yes |
| Global Part Number GPN | 559179 |
| Mounting Method | Set Screw |
| Length Thru Bore | 1.656 Inch | 42.06 Millimeter |
| Cartridge Pilot Diameter | 0 Inch | 0 Millimeter |
| Cartridge Pilot Depth | 0 Inch | 0 Millimeter |
| Bolt Spacing | 5.669 Inch | 144 Millimeter |
| Nominal Bolt Circle Diameter Round | 5.7 Inch | 144 Millimeter |
| Housing Style | 2 Bolt Flange Block |
| Number of Mounting Holes | 2 |
| Mounting Bolts | 10 Millimeter |
| Insert Part Number | SG2M40EL |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Thermoplastic |
| Expansion / Non-expansion | Non-expansion |
| Seals | Single Lip Contact |
| Pilot Configuration | No Pilot |
