Specifications

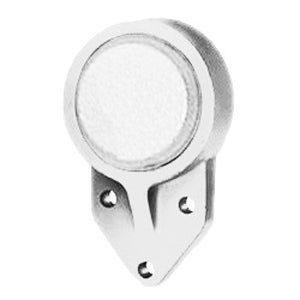

| title | MBFBL204BSCEW |
| price | $ 142.57 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | ASAHI BEARINGS |
| Weight / kgm | 0.21 |
| Inch - Metric | Metric |
| Brand | AMI BEARINGS |
| Weight / LBS | 0.46 |
| Bore | 0.787 Inch | 20 Millimeter |
| EAN | 0808250315796 |
| Other Features | Single Row | Spherical | Normal Duty | White Housing | Closed End | Back Seal |
| Relubricatable | Yes |
| Global Part Number GPN | 527383 |
| Mounting Method | Set Screw |
| Length Thru Bore | 0.972 Inch | 24.7 Millimeter |
| Cartridge Pilot Diameter | 0 Inch | 0 Millimeter |
| Cartridge Pilot Depth | 0 Inch | 0 Millimeter |
| Bolt Spacing | 0.874 Inch | 22.2 Millimeter |
| Nominal Bolt Circle Diameter Round | 0 Inch | 0 Millimeter |
| Housing Style | 3 Bolt Flange Bracket |
| Number of Mounting Holes | 3 |
| Mounting Bolts | 10 Millimeter |
| Insert Part Number | MB4 |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Thermoplastic |
| Expansion / Non-expansion | Non-expansion |
| Seals | Contact Seal |
| Pilot Configuration | No Pilot |
