Specifications

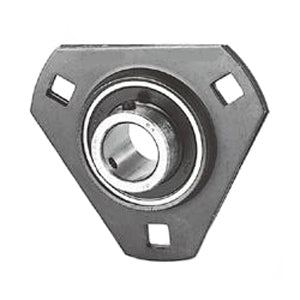

| title | MBPFTS5 |
| price | $ 105.74 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | ASAHI BEARINGS |
| Weight / kgm | 0.18 |
| Inch - Metric | Metric |
| Brand | AMI BEARINGS |
| Weight / LBS | 0.4 |
| Bore | 0.984 Inch | 25 Millimeter |
| EAN | 0808250281336 |
| Other Features | Single Row | Spherical | Normal Duty |
| Relubricatable | No |
| Global Part Number GPN | 527586 |
| Mounting Method | Set Screw |
| Length Thru Bore | 1.063 Inch | 27 Millimeter |
| Cartridge Pilot Diameter | 0 Inch | 0 Millimeter |
| Cartridge Pilot Depth | 0 Inch | 0 Millimeter |
| Bolt Spacing | 2.6 Inch | 66 Millimeter |
| Nominal Bolt Circle Diameter Round | 3 Inch | 76 Millimeter |
| Housing Style | 3 Bolt Triangular Flange Block |
| Number of Mounting Holes | 3 |
| Mounting Bolts | 8 Millimeter |
| Insert Part Number | MB5 |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Stamped Stainless Steel |
| Expansion / Non-expansion | Non-expansion |
| Seals | Contact Seal |
| Pilot Configuration | No Pilot |
