Specifications

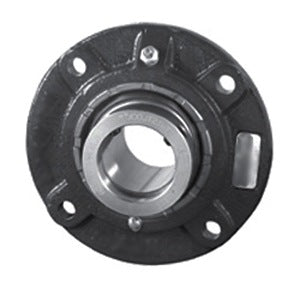

| title | MBR3215 |
| price | $ 1,084.04 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | REXNORD |
| Weight / kgm | 10.31 |
| Inch - Metric | Inch |
| Brand | REXNORD |
| Weight / LBS | 22.7 |
| Bore | 2.938 Inch | 74.625 Millimeter |
| EAN | 0698210910884 |
| Other Features | Double Row |
| Relubricatable | Yes |
| Global Part Number GPN | 555458 |
| Mounting Method | Eccentric Collar |
| Length Thru Bore | 4.203 Inch | 106.756 Millimeter |
| Cartridge Pilot Diameter | 6.375 Inch | 161.92 Millimeter |
| Cartridge Pilot Depth | 1.25 Inch | 31.75 Millimeter |
| Bolt Spacing | 5.297 Inch | 134.544 Millimeter |
| Nominal Bolt Circle Diameter Round | 7.5 Inch | 190 Millimeter |
| Housing Style | 4 Bolt Round Flange Cartridge |
| Number of Mounting Holes | 4 |
| Mounting Bolts | 5/8 Inch |
| Insert Part Number | 3215U |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Iron |
| Expansion / Non-expansion | Non-expansion |
| Seals | Heavy Contact |
| Pilot Configuration | With Pilot |
