Specifications

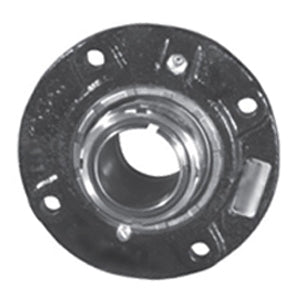

| title | MBR6307 |
| price | $ 1,899.49 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | REXNORD |
| Inch - Metric | Inch |
| Brand | REXNORD |
| Weight / LBS | 36.5 |
| Bore | 3.438 Inch | 87.325 Millimeter |
| EAN | 793699903133 |
| Other Features | Double Row |
| Relubricatable | Yes |
| Global Part Number GPN | 552928 |
| Mounting Method | Tapered Adapter Sleeve |
| Length Thru Bore | 5.141 Inch | 130.581 Millimeter |
| Cartridge Pilot Diameter | 7.375 Inch | 187.32 Millimeter |
| Cartridge Pilot Depth | 1.25 Inch | 31.75 Millimeter |
| Bolt Spacing | 6.094 Inch | 154.8 Millimeter |
| Nominal Bolt Circle Diameter Round | 8.6 Inch | 218.4 Millimeter |
| Housing Style | 4 Bolt Round Flange Cartridge |
| Number of Mounting Holes | 4 |
| Mounting Bolts | 3/4 Inch |
| Insert Part Number | 6307U |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Iron |
| Expansion / Non-expansion | Non-expansion |
| Seals | Heavy Contact |
| Pilot Configuration | With Pilot |
