Specifications

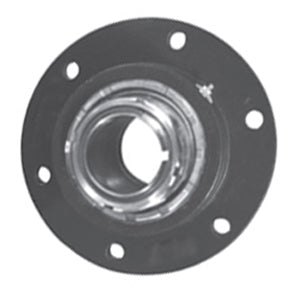

| title | MBR6403Y |
| price | $ 4,037.38 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | REXNORD |
| Inch - Metric | Inch |
| Brand | REXNORD |
| Weight / LBS | 84 |
| Bore | 4.188 Inch | 106.375 Millimeter |
| EAN | 793699907001 |
| Other Features | Double Row |
| Relubricatable | Yes |
| Global Part Number GPN | 552925 |
| Mounting Method | Tapered Adapter Sleeve |
| Length Thru Bore | 6.25 Inch | 158.75 Millimeter |
| Cartridge Pilot Diameter | 10.25 Inch | 260.35 Millimeter |
| Cartridge Pilot Depth | 2 Inch | 50.8 Millimeter |
| Bolt Spacing | 5.875 Inch | 149.225 Millimeter |
| Nominal Bolt Circle Diameter Round | 11.8 Inch | 300 Millimeter |
| Housing Style | 6 Bolt Round Flange Cartridge |
| Number of Mounting Holes | 6 |
| Mounting Bolts | 3/4 Inch |
| Insert Part Number | 6403YU |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Iron |
| Expansion / Non-expansion | Non-expansion |
| Seals | Heavy Contact |
| Pilot Configuration | With Pilot |
