Specifications
| title | MF5107S |
| price | $ 625.80 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | REXNORD |
| Inch - Metric | Inch |
| Brand | REXNORD |
| Weight / LBS | 7.6 |
| Bore | 1.438 Inch | 36.525 Millimeter |
| EAN | 698210702441 |
| Other Features | Double Row | Double Collar | With Set Screw |
| Relubricatable | Yes |
| Global Part Number GPN | 555522 |
| Mounting Method | Concentric Collar |
| Length Thru Bore | 3.563 Inch | 90.5 Millimeter |
| Cartridge Pilot Diameter | 3.563 Inch | 90.5 Millimeter |
| Cartridge Pilot Depth | 0.188 Inch | 4.775 Millimeter |
| Bolt Spacing | 3.719 Inch | 94.463 Millimeter |
| Nominal Bolt Circle Diameter Round | 5.2 Inch | 132 Millimeter |

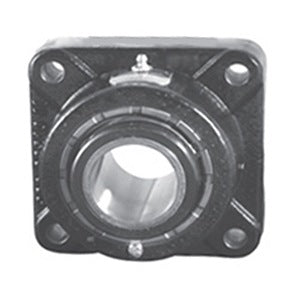

| Housing Style | 4 Bolt Square Flange Block |
| Number of Mounting Holes | 4 |
| Mounting Bolts | 1/2 Inch |
| Insert Part Number | 5107U |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Iron |
| Expansion / Non-expansion | Non-expansion |
| Seals | Heavy Contact |
| Pilot Configuration | With Pilot |
